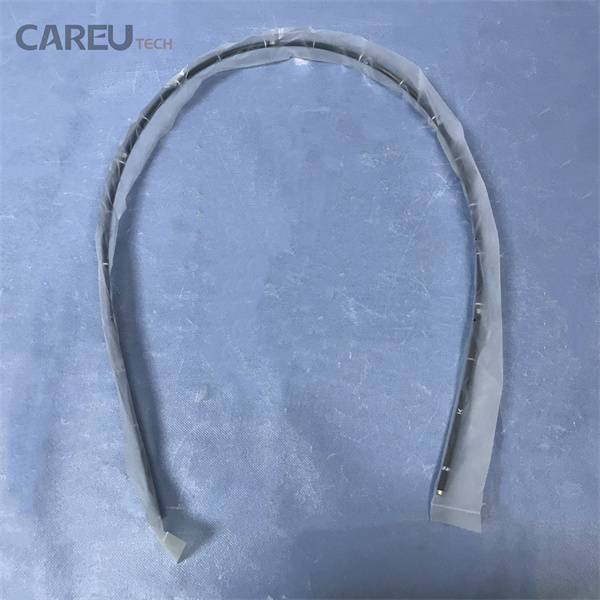

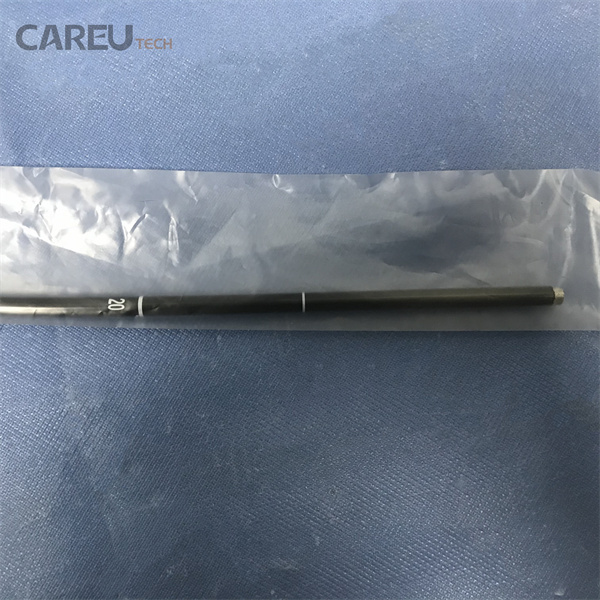

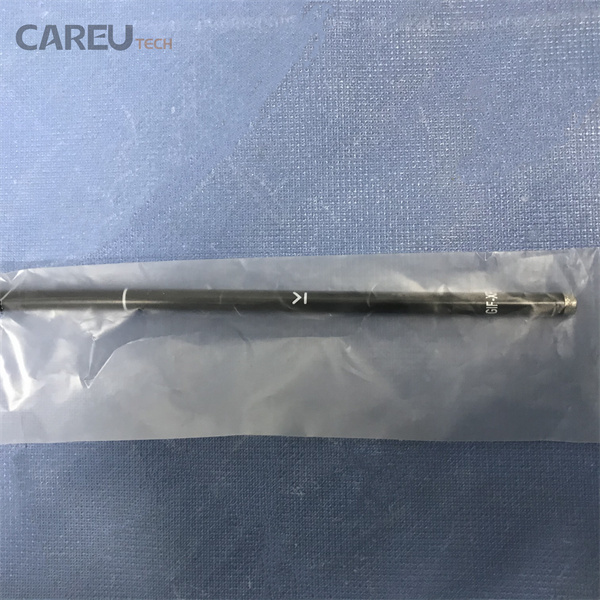

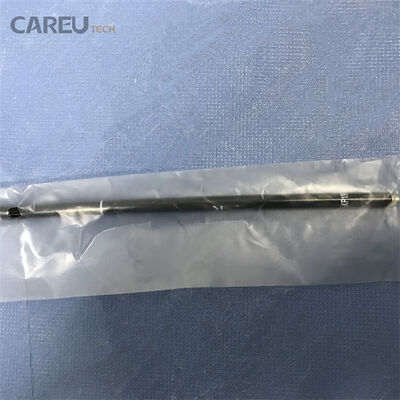

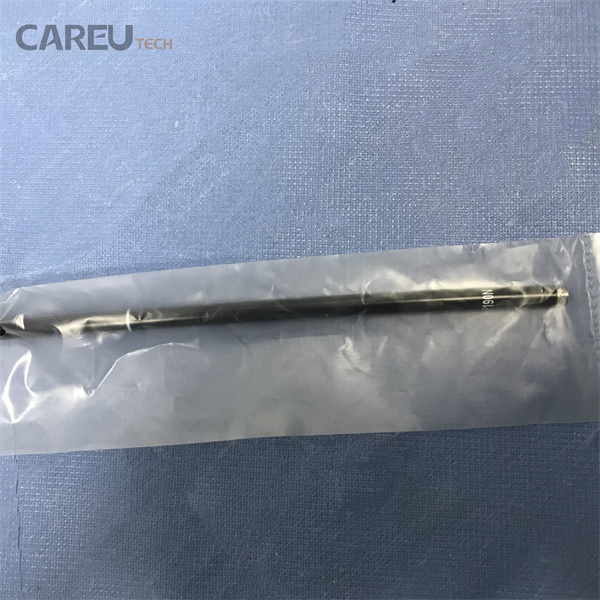

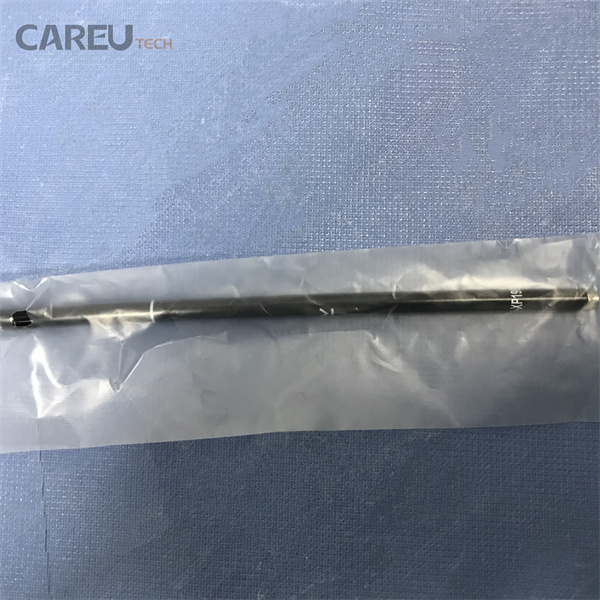

Insertion Tube For Olympus GIF-XP190N Ultra-slim Video Gastroscope

Insertion Tube For Olympus GIF-XP190N Ultra-slim Video Gastroscope

► Brief Description

The Olympus GIF-XP190N is an ultra-slim video gastroscope designed primarily for transnasal endoscopy, pediatric use, and patients with severe esophageal strictures.The insertion tube is the core structural component of the scope that enters the patient's gastrointestinal tract. It is engineered to balance extreme thinness with high durability, houses the internal fiber-optic bundles and video wiring, and provides the necessary column strength for smooth advancement without looping.

► Features

• Ultra-Slim Profile for Patient Comfort
• High-Density Internal Packing
• Tapered Distal Tip
• Advanced Flexibility & Torque Transmission
• Chemical and Wear Resistance

► Specification

► FAQ

What are the primary signs that the insertion tube needs to be replaced?

A: You should pull the endoscope from clinical service and replace the insertion tube if you notice any of the following:

• Deep scratches, cuts, or bites on the outer polyurethane jacket (which compromise the fluid-tight seal).

• "Browning" or yellowing and hardening of the outer tube due to chemical degradation from high-level disinfectants.

• Buckling or wrinkling (kinking) along the shaft, which pinches internal components.

• Loss of torque transmission, where twisting the control handle no longer results in an immediate, crisp rotation of the distal tip.

• Repeated fluid invasion (leaking) that is traced back to microscopic porosity in the tube body.

► More service

Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.
