Bending Section Assembly For Olympus GIF-H190 Gastroscope

Bending Section Assembly For Olympus GIF-H190 Gastroscope

► Brief Description

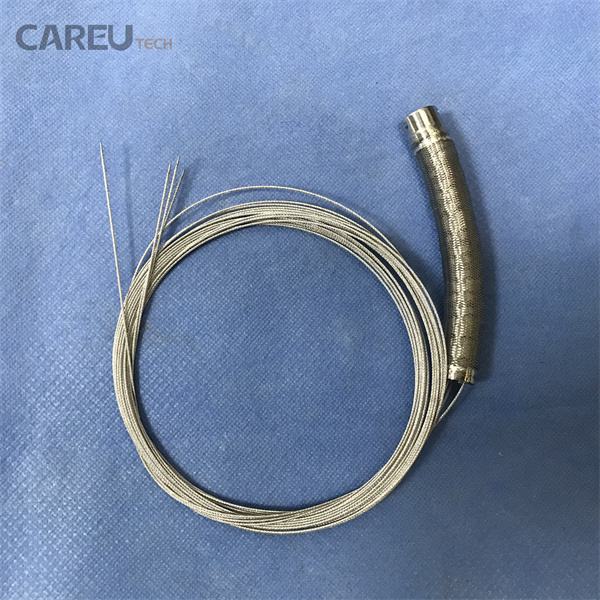

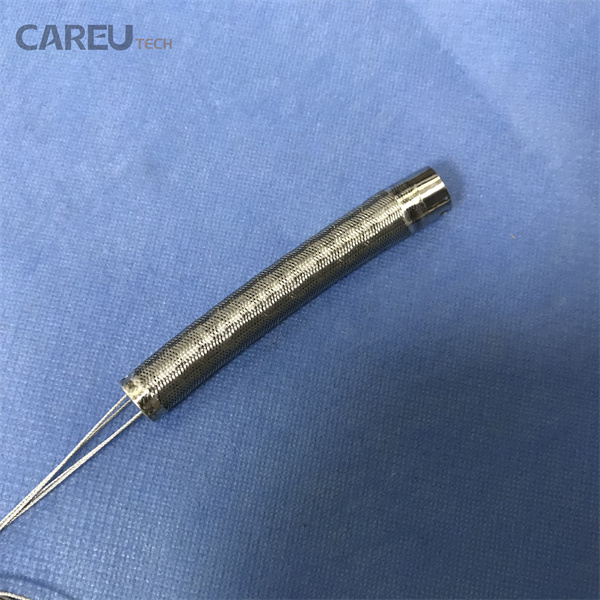

The Bending Section Assembly is a critical, high-precision component located at the distal end of the Olympus GIF-H190 EVIS EXERA III video gastroscope. It provides the flexibility and structural integrity required for the endoscope to navigate the complex curves of the upper gastrointestinal tract.Constructed from a series of interconnected metal rings (segments) covered by a durable mesh, this assembly allows smooth, controlled angulation driven by the endoscope's control knobs.

► Features

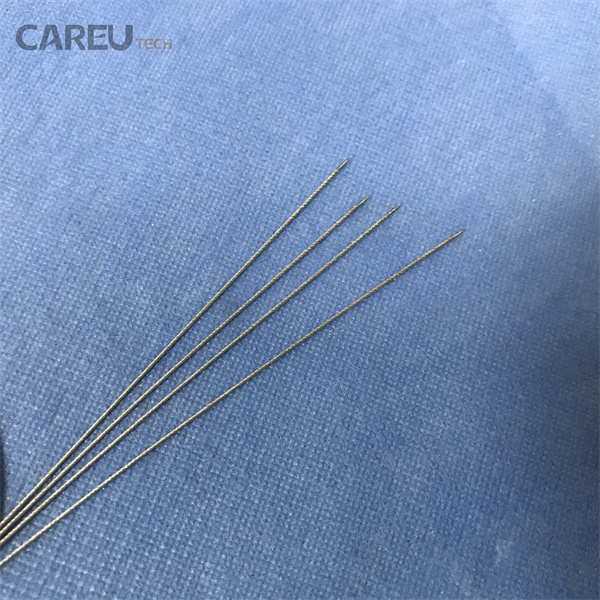

• Four-Way Angulation Control: It translates the mechanical pull of the steering cables from the control handle into precise Up/Down/Left/Right movements, allowing the endoscopist to steer around sharp anatomical turns (like the duodenum).
• Retroflexion Capability: With an impressive upward angulation of 210°, it enables the "U-turn" maneuver (retroflexion) required to inspect the gastric cardia and fundus thoroughly.
• Internal Channel Protection: It acts as a protective conduit for delicate internal components—such as the Light Guide bundles, CCD/CMOS video cables, water/air channels, and the instrument (biopsy) channel—preventing them from kinking or breaking during tight bends.
• Hermetic Sealing (Waterproofing): When properly sealed with its outer rubber sheath, it prevents fluid invasion (biomedical waste, water, or chemical disinfectants) into the inner workings of the endoscope, preventing costly fluid damage.

► Specification

► FAQ


► More service

Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.



► About Us

CareUtech is the global provider of medical equipment and medical equipment repair service, as well as offering spare parts. We focus on repair and repair training for monitor, Flexible & Rigid Endoscope, ultrasound, camera system, dynamical system and surgical instrument.

Shipping and packing

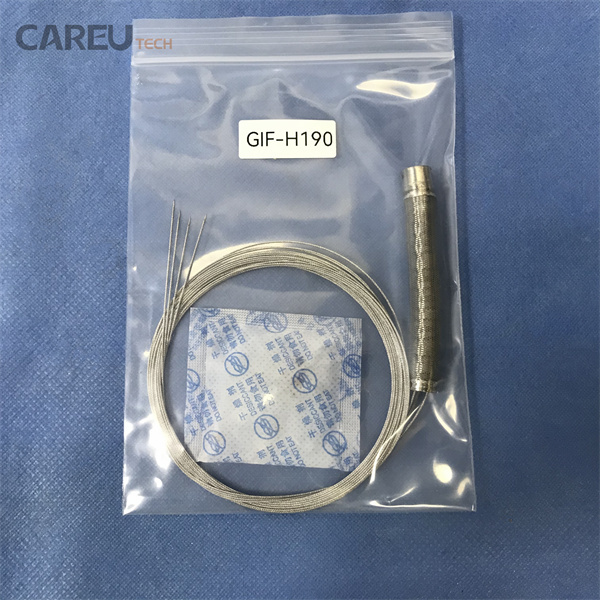

All products will be tested and sterilized for free, perfectly packed to ensure the safety of the goods, strictly in accordance with international export rules. We send to worldwide via EMS, DHL, FEDEX or other express, based on your choice.
