Bending Section Assembly For PENTAX EG-2990i Gastroscope

Bending Section Assy For PENTAX EG-2990i Gastroscope

► Brief Description

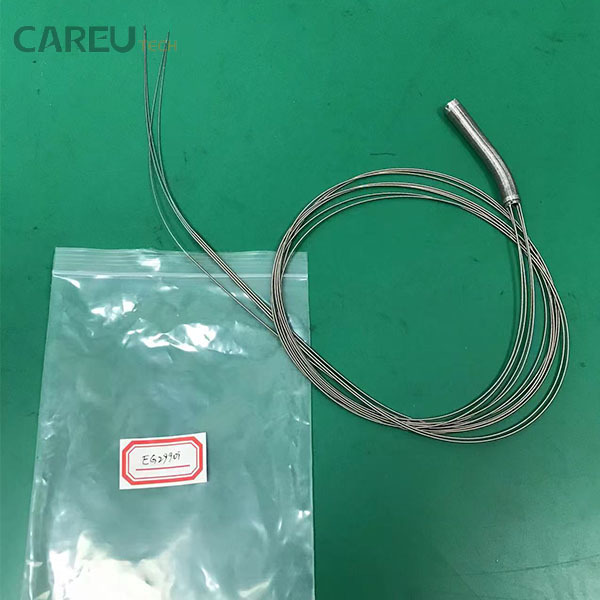

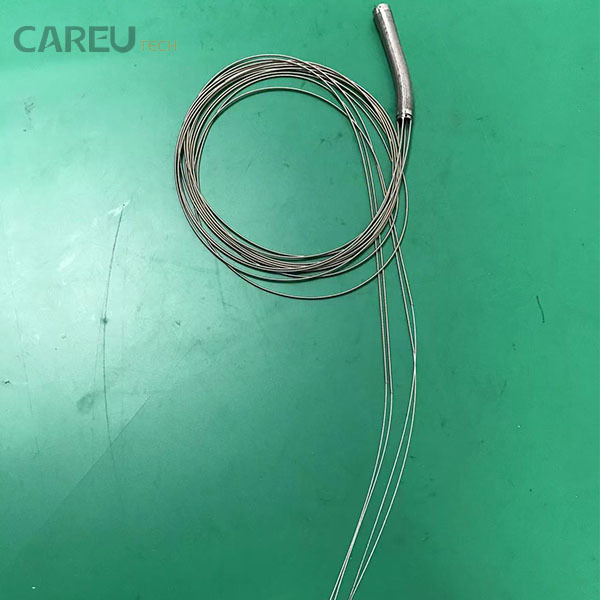

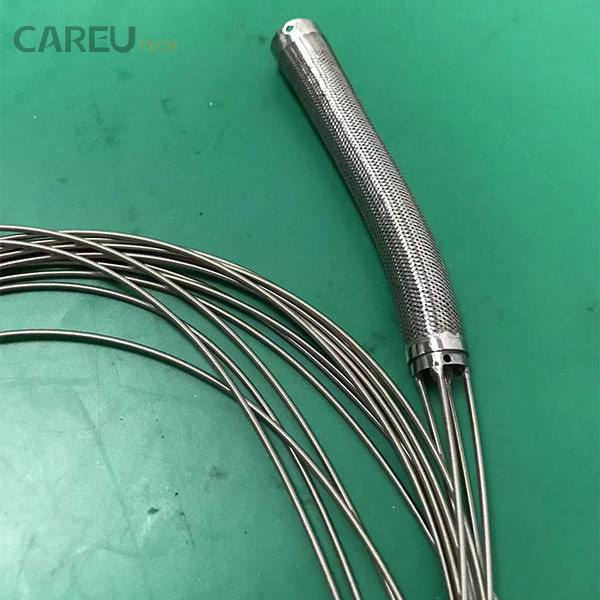

The Pentax EG-2990i  Bending Section assembly included bending section, mesh, angulation wire, coil pipe (helix tube).

► Features

• Compatibility: Designed for Pentax colonoscopes or similar endoscope models.

• Function: Replacement.

• Material: Stainless Steel materials for durability and sterility.

• Application: Used in gastrointestinal (GI) endoscopy, bronchoscopy, or hysteroscopy procedures.

► Replacement & Maintenance

• Professional Service Required: Bending section replacement is complex and typically performed by technicians.
• Replace if cracks, wear, or malfunction occurs.
• Use genuine PENTAX parts for optimal performance.

► Specification

►FAQ

What clinical and mechanical signs indicate a failing bending section on the EG-2990i?

• Loss of Articulation Range: Inability to achieve maximum up/down or right/left angulation angles specified by the manufacturer.

• Slack or "Jumpy" Knobs: Excessive backlash or free play in the control body knobs before the distal tip begins to deflect.

• Bumping or Catching: Grinding sensations or mechanical catching during rotation or bending.

• Positive Leak Test Failure: Fluid invasion inside the insertion portion due to micro-tears or pinholes in the bending rubber sleeve.

How can facilities maximize the lifespan of the EG-2990i bending section?

• Avoid excessive looping, sharp coiling, or forcing the insertion tube when resistance is met.

• Always store the scope hanging vertically in a well-ventilated cabinet with the angulation locks fully released.

• Strictly adhere to pre-cleaning, leak testing, and enzymatic washing protocols to prevent chemical degradation of the rubber sheath.

► More service

Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.
