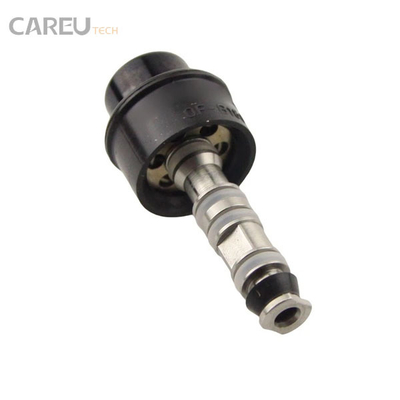

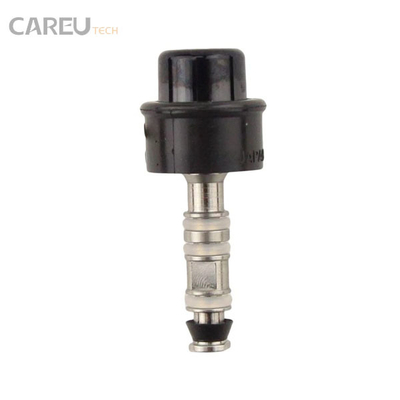

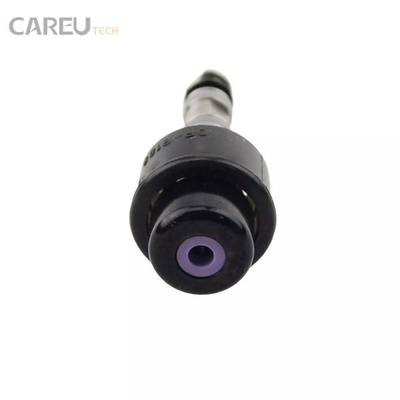

PENTAX OF-B188 Air Water Suction Button For Pentax OF-B188 Endoscope Parts

Suction valve OF-B188 For Pentax Endoscope

► Brief Description

The Pentax OF-B188 Suction Valve is a component used in medical suction devices, particularly in PENTAX suction pumps or endoscopic suction systems. These valves are crucial for controlling suction pressure during medical procedures, especially in endoscopy, laparoscopy, or surgical suction applications.

► Features

• Compatibility: Designed for use with Olympus suction units (e.g., UHI-3, UHI-4).

• Function: Regulates and controls suction pressure during procedures.

• Material: Medical-grade materials for durability and sterility.

• Application: Used in gastrointestinal (GI) endoscopy, bronchoscopy, or hysteroscopy procedures.

► Replacement & Maintenance

• Ensure proper sterilization if reusable.
• Replace if cracks, wear, or malfunction occurs.
• Use genuine Olympus parts for optimal performance.

► Specification

► FAQ

Which PENTAX endoscopes are compatible with the OF-B188 valve?

The OF-B188 is designed primarily for PENTAX Medical 90K Series and 90i Series flexible endoscopes (e.g., EG-2990i, EC-3890K). It is used across standard upper GI gastroscopes, lower GI colonoscopes, and sigmoidoscopes within these generations.

Why does the valve feel "sticky" or fail to spring back up when pressed?

A sticky valve is usually caused by:

1. Inadequate Lubrication: The O-rings are dry and creating too much friction against the endoscope's cylinder walls.

2. Debris Build-up: Dried enzymatic detergent, proteins, or chemical crystals from inadequate rinsing during reprocessing have accumulated inside the valve tracks.

3. Bent Stem: The metal stem has been dropped or bent, requiring complete replacement of the valve.

► More service

Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.
