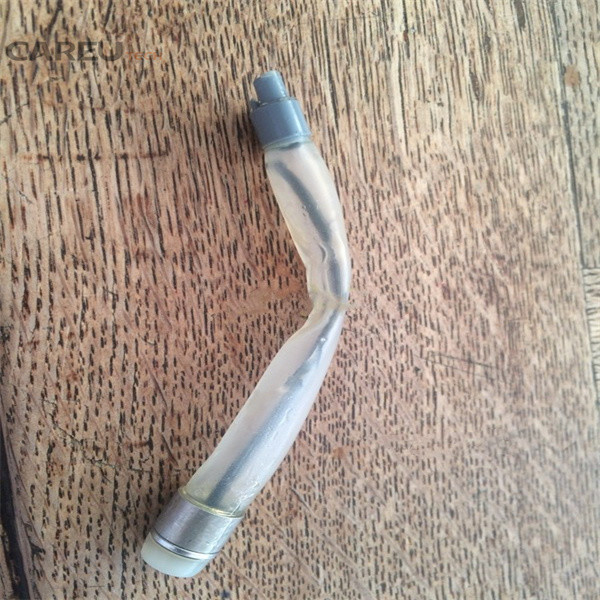

Oil Tank For 3D4D Ultrasound Transducer Probe Parts

Oil Tank For 3D4D Ultrasound Transducer

► Brief Description

In a mechanical 3D/4D ultrasound transducer (such as the GE Voluson RAB or RIC series), the "Oil Tank" (often referred to as the fluid dome assembly or acoustic oil reservoir) is a sealed, fluid-filled chamber at the tip of the probe.

Unlike standard 2D probes, a mechanical 3D/4D probe contains an internal motor that physically sweeps the transducer array back and forth to capture volumetric data data in real time. To facilitate this, the entire moving mechanism must be submerged in a specialized acoustic liquid. The oil tank serves as both the housing for this liquid and the protective interface between the moving internal parts and the patient.

► Features

• Acoustic Coupling
• Internal Volume and Pressure Compensation (The Bladder Function)
• Mechanical Lubrication & Cooling
• Structural Protection

► Specification

► FAQ

What happens if I keep using a probe with a low oil level or a small leak?

Continuing to use the probe will eventually destroy it. The oil lubricates and cools the internal sweeping motor. Without enough oil, friction increases, causing the motor to overheat, jitter, or seize entirely. This will result in a permanent mechanical failure and a system error code (e.g., "Motor Error") on your ultrasound machine.

►More service

Ultrasound probe spare parts:

2D/3D/4D probe parts as below: Lens (dome), cable, housing (case), strain relief (cover), connector and crystal are provided

► About Us

CareUtech is the global provider of medical equipment and medical equipment repair service, as well as offering spare parts. We focus on repair and repair training for monitor, Flexible & Rigid Endoscope, ultrasound, camera system, dynamical system and surgical instrument.

Shipping and packing
All products will be tested and sterilized for free, perfectly packed to ensure the safety of the goods, strictly in accordance with international export rules. We send to worldwide via EMS, DHL, FEDEX or other express, based on your choice.

► What we can do
