Flexible Endoscope Parts Light Guide Bundles For Olympus GIF-160

Light Guide Bundles For Olympus GIF-160

► Brief Description

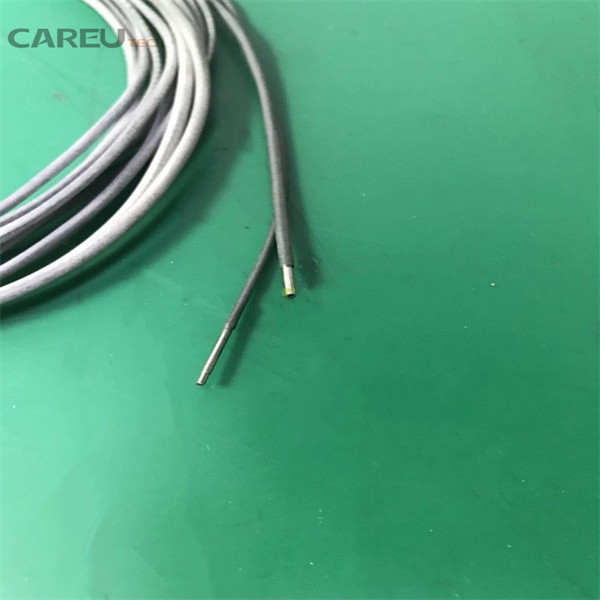

The Light Guide Bundle is a critical internal component of the Olympus GIF-160 Gastrovideoscope. It consists of a high-density assembly of thousands of individual optical glass fibers designed to transmit cold light from the external light source (e.g., CLV-160) through the endoscope's universal cord and insertion tube to the distal tip. This ensures bright, uniform illumination of the gastrointestinal tract during diagnostic and therapeutic procedures.

► Features

• High-Efficiency Light Transmission: Delivers maximum lumens with minimal "light drop-off" over the length of the endoscope, ensuring the mucosal surface is clearly visible even in deep cavities.
• Color Fidelity: Maintains the original color temperature of the light source, which is vital for the accurate identification of vascular patterns and lesions (especially when using NBI or similar imaging modes).
• Heat Dissipation: The fiber arrangement is designed to transmit "cold light," preventing thermal damage to delicate esophageal or gastric tissue at the distal tip.
• Flexibility & Durability: Engineered to withstand the extreme "bending" and "retroflexion" (up to 210°) required during gastroscopy without excessive fiber breakage.

► Specification

► FAQ

How to know if your GIF-160 light guide bundle needs replacement?

The most common indicators are:

1.Dim or Yellowish Image: If the light source is at maximum power but the monitor remains dark or the light has a yellow tint.

2."Black Dots" (Fiber Breakage): If you look at the distal tip (where the light comes out) while the endoscope is connected to a light source, you will see black spots. These represent broken glass fibers that no longer transmit light.

3.Heat at the Connector: If the light guide connector (the part that plugs into the CLV-160) becomes excessively hot, it may indicate a burnt or degraded proximal end.

What causes the fibers in the GIF-160 bundle to break?

1.Mechanical Stress: Frequent "retroflexion" (sharp bending) of the endoscope tip.

2.Age: Over time, the glass fibers become brittle.

3.Improper Handling: Accidental impact or dropping the endoscope can shatter the delicate glass fibers inside the bundle.

4.Chemical Exposure: Using unapproved high-level disinfectants can degrade the protective sheath, allowing moisture to seep in and damage the fibers.

► More service

Spare parts for flexible endoscope: insert tube, wires,helix tube,coil pipe,C-cover,glass for CCD,glass for light bundle,objective lens for CCD,drive board for CCD,light guide tube, light bundle,forcep tube, bending section, rubber, air&water tube, CCD, light source, processor, monitor, etc.
