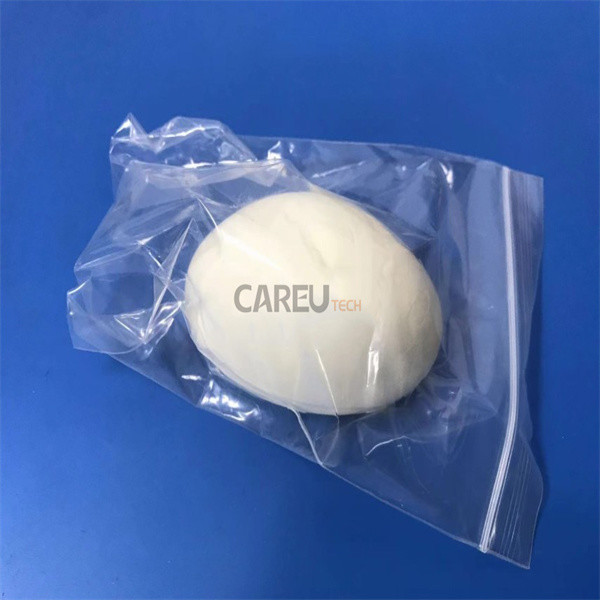

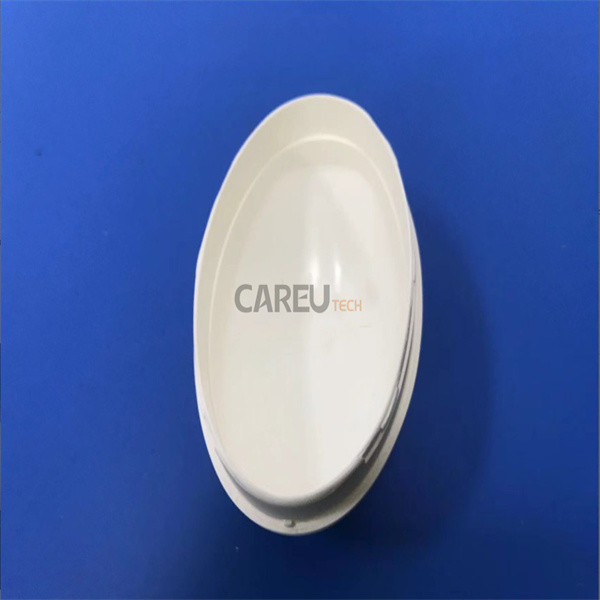

Dome For Samsung CV1-8AD

► Brief Description

This dedicated protective dome is a precision replacement part custom-engineered for the ‌Samsung CV1-8AD endocavity ultrasound transducer‌, designed to fully match the original transducer’s structural dimensions and acoustic performance requirements. It protects the transducer’s internal sensitive piezoelectric crystal components from physical damage, fluid intrusion and cross-contamination during examinations.

► Features

• Acoustic Performance Preservation‌: It maintains the original ultrasound penetration and resolution of the CV1-8AD transducer, ensuring no signal attenuation or image artifacts during abdominal, obstetric, gynecological and urology examinations.
• Sealed Barrier Protection‌: It forms a fully sealed outer shell to block body fluids, disinfectant residues and tiny debris from entering the internal precision crystal assembly, preventing permanent transducer failure.
• Patient Safety Guarantee‌: The smooth, rounded surface eliminates sharp edges, reducing patient discomfort during insertion while supporting compliance with hospital infection control standards.

► Specification

►FAQ

What are the obvious signs that indicate the dome needs immediate replacement?

A: You must replace the dome right away when these issues occur:

• Visible surface cracks, peeling, blisters or dents
• Local discoloration or material aging after repeated disinfection cycles
• Fluid seepage traces inside the dome, which may damage the transducer core
• Obvious image artifacts or signal attenuation that cannot be eliminated by adjusting the probe position

What are the main causes of premature dome damage?

A: The top factors leading to early failure include:

1. Scratches from sharp instruments (such as hemostats, scalpels) during cleaning or installation
2. Long-term immersion in disinfectant with excessive concentration or beyond the specified time limit
3. Improper storage that causes the dome to be squeezed and deformed, destroying its acoustic flatness

What are the prohibited operations during daily use and maintenance?

A:Do not use sharp tools to scrape or wipe the dome surface

• Do not use disinfectants containing strong corrosive ingredients (such as high-concentration chlorine) for soaking
• Do not forcibly stretch or twist the dome during installation, which will cause irreversible deformation
• Do not use the transducer if the dome is damaged, to avoid fluid intrusion that burns out the internal crystal

► More service

Ultrasound probe spare parts:

2D/3D/4D probe parts as below: Lens (dome), cable, housing (case), strain relief (cover), connector and crystal are provided
